Ledebuhr Industries Rotary Atomizer for Produced & Wastewater Evaporation

      Brine Evaporation Pond     Wastewater Evaporation Pond

Proptec Rotary Atomizers provide the ideal air & water mixture to achieve superior evaporation
rates for produced water elimination

Evaporation with Ledebuhr Proptec Rotary Atomizers

  • Doesn’t clog like traditional pressure nozzles even with high TDS water
  • Uses low pressure water supply – no expensive pressure pumps needed
  • Minimal maintenance required – robust industrial design for difficult service & water
  • Large water flow-rate range - from 0 to 8 GPM
  • Produces billions more droplets than the typical pressure nozzles from same water volume.
  • Produces a ~100 microns droplet (diameter of human hair) for optimum evaporation/drift
  • Easily directed and adjusted toward intended target or desired area
  • Use with or without fan-assist for drift control
  • Electric, hydraulic powered units available
  • Axial fan design mixes droplets efficiently into surrounding air

Control your pond levels by accelerating evaporation

Control drift with controlled droplet size





Send Us an Email

Send us an email describing your need or situation and we will quote your
custom solution!

Give Us a Call

Prefer to speak to one of our engineers? Give us a call today!

(866) 641-4671

Produced Water & Wastewater
Management Solution:
Produced Water Evaporation Pond

An array of Proptec atomizers can quickly evaporate your wastewater. A one million gallon pond (1 acre, 3’ deep) can be evaporated in as little as 1 month with a 4 atomizer array, or 2 weeks with 8 atomizers.

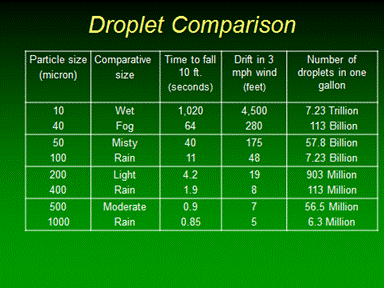

Droplet comparison chart

The area of one (1) gallon of pond water is 0.26 Sq. Ft.

  • 100 micron droplets increase this surface area to 2,445 Sq. Ft.
  • 200 micron droplets increase this surface area to 1,221 Sq. Ft.
  • Higher surface area means higher evaporation rate
  • Smaller droplets hang in the air longer, increasing evaporation rate

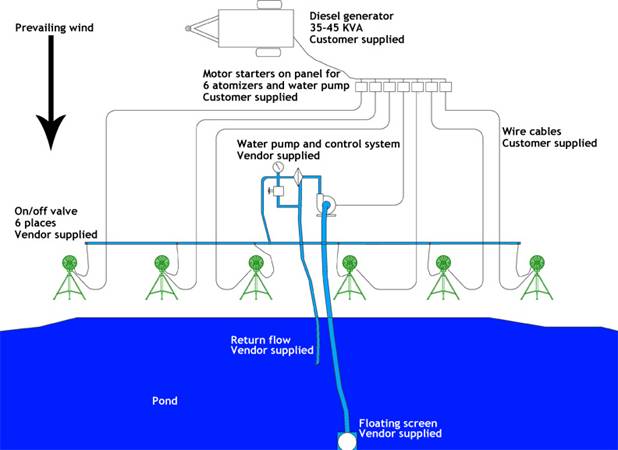

Typically designed six (6) atomizer evaporation system

Diagram of evaporation system in pond

Six (6) atomizer/pond pump system with no clogging pond pump/atomizers can atomize over 900 barrels of water per day.  Apply the evaporation rate of your location. This is not drift away droplets but contained evaporation.

Rotary Atomizer Evaporation, 4-atomizer unit demonstration:
